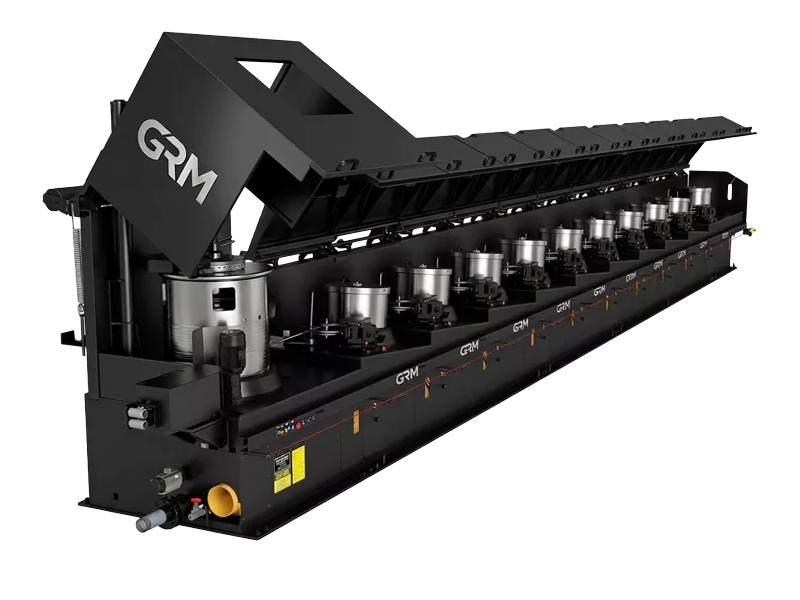

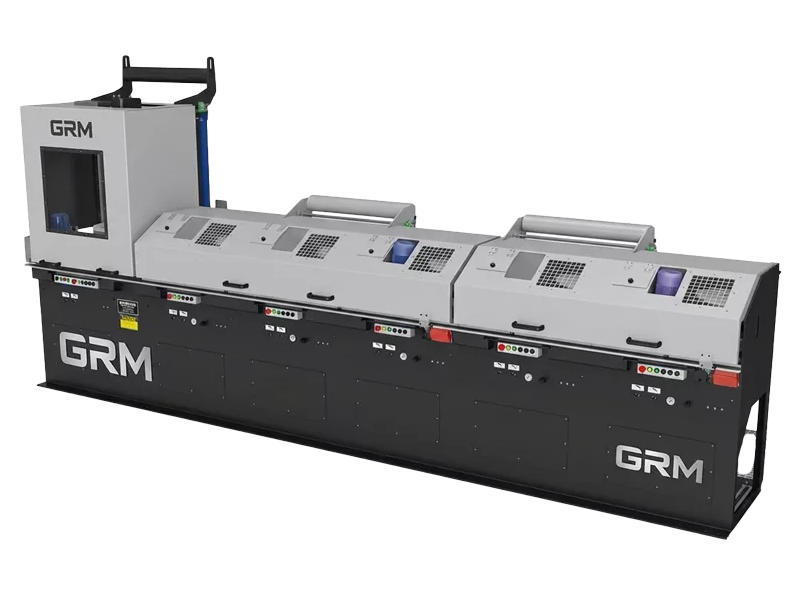

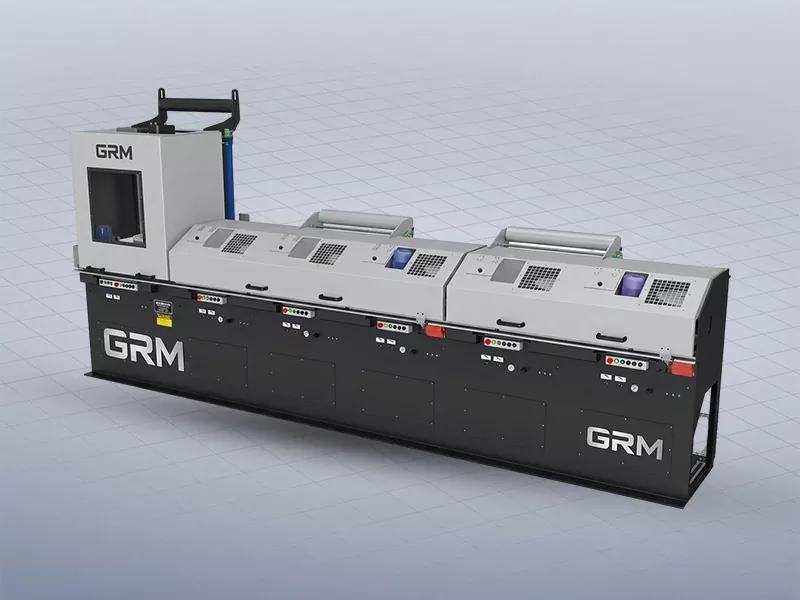

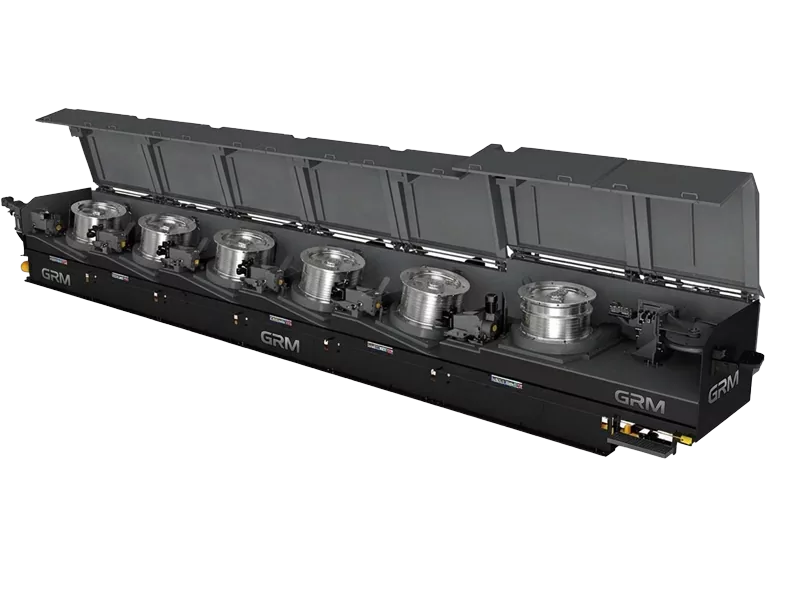

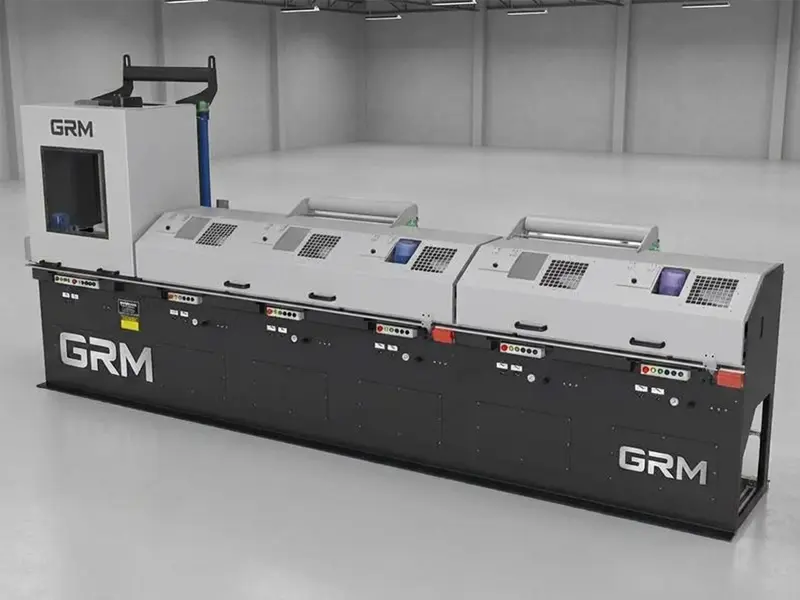

高速精密伸線機

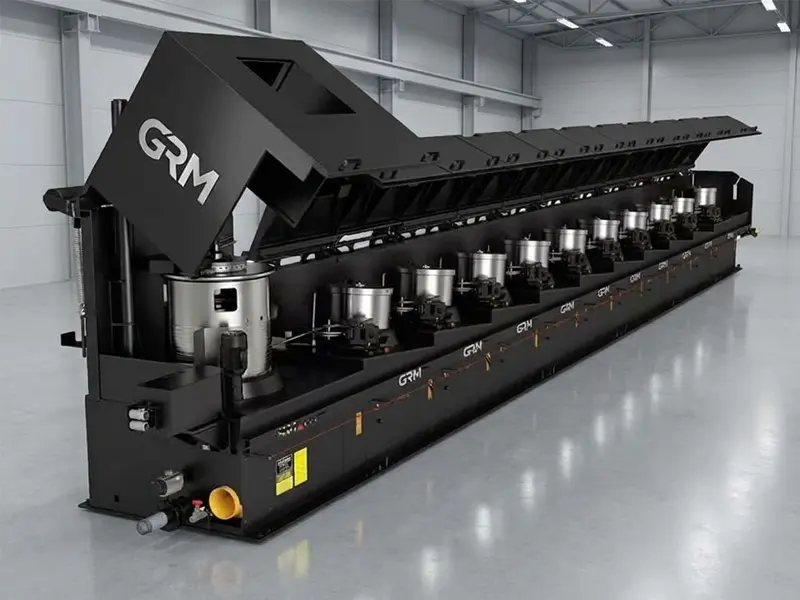

The quality high-speed precision wire drawing machine from the GRM series—offered by GRM Rolling Mill—is a highly efficient processing system specifically designed for high-, medium-, and low-carbon steel wire, stainless steel wire, copper wire, and shaped alloy wire. Far more than a simple device for "thinning wire," it utilizes a precision servo drive system and closed-loop tension control to achieve an exceptionally high surface finish while simultaneously preserving the mechanical properties of the wire material.

Process Flow:

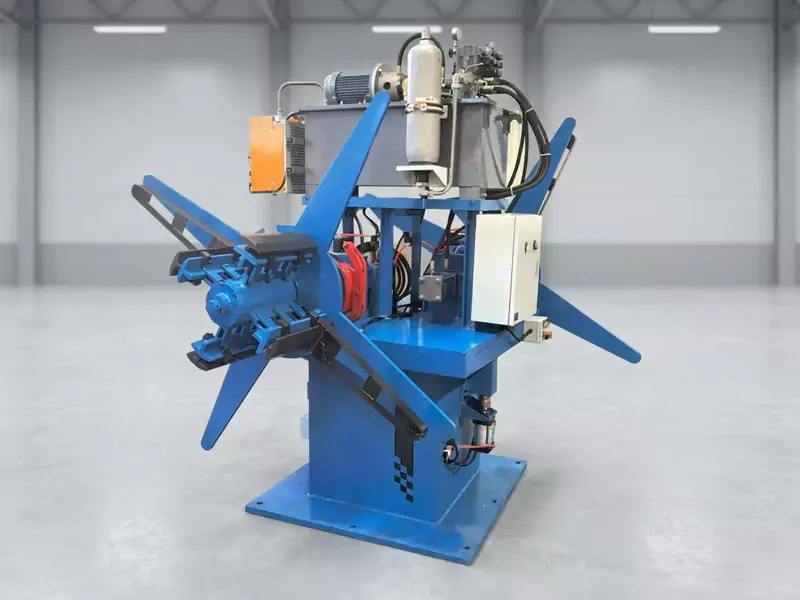

1. Pay-off: High-sensitivity active or passive pay-off mechanism ensures twist-free feeding.

2. Pre-treatment: Surface peeling or lubricant coating (depending on material requirements).

3. Drawing Unit: The wire passes through multiple stages of tungsten carbide or diamond dies for progressive diameter reduction.

4. Tension Control: Pneumatic dancer rollers provide real-time feedback to eliminate vibrations.

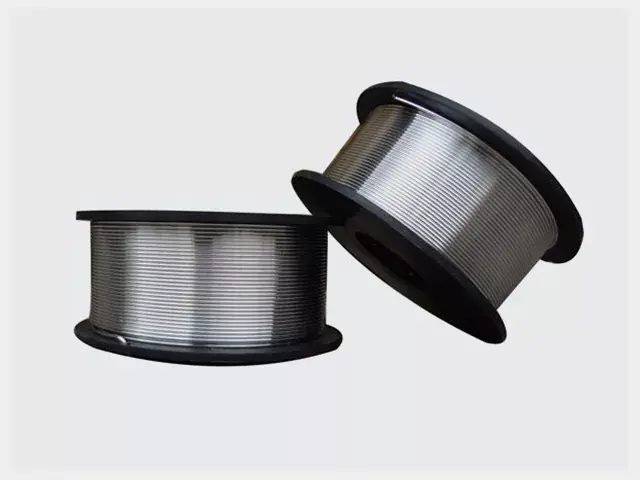

5. Take-up: I-beam spool or elephant-trunk style take-up ensures neat wire layering, facilitating subsequent processing steps.

Key Advantages:

● High Product Quality: Precision dies and a rigid machine frame ensure precise wire diameter tolerances (achieving ±0.03mm); superior tension control and lubrication guarantee a bright, scratch-free wire surface with uniform performance characteristics.

● Stable and Reliable Operation: Key components are constructed from high-strength alloy materials and heavy-duty bearings, providing exceptional structural rigidity, robust overload resistance, a low failure rate, and simplified maintenance.

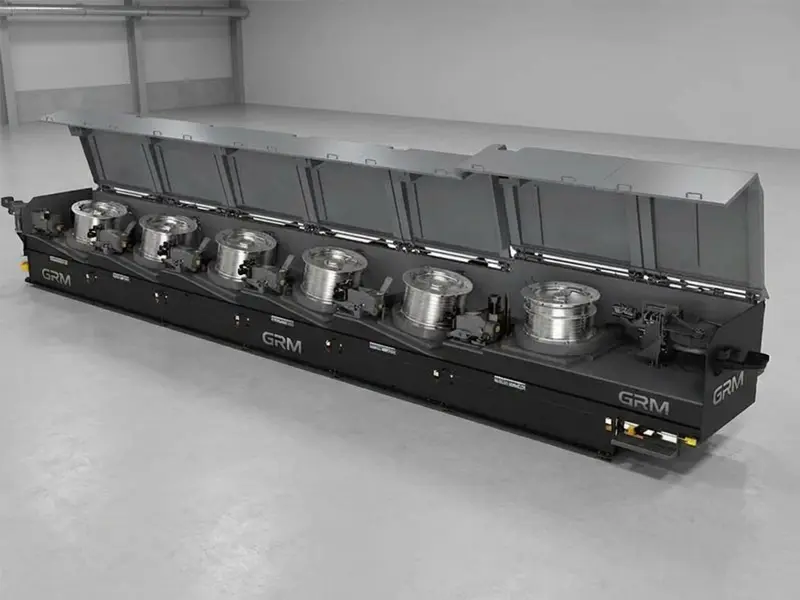

● High Productivity and Efficiency: The straight-line design of this High-Speed Precision Wire Drawing Machine enables simultaneous multi-pass drawing, delivering high production speeds and strong continuous-operation capabilities to significantly boost overall output.

Application Areas:

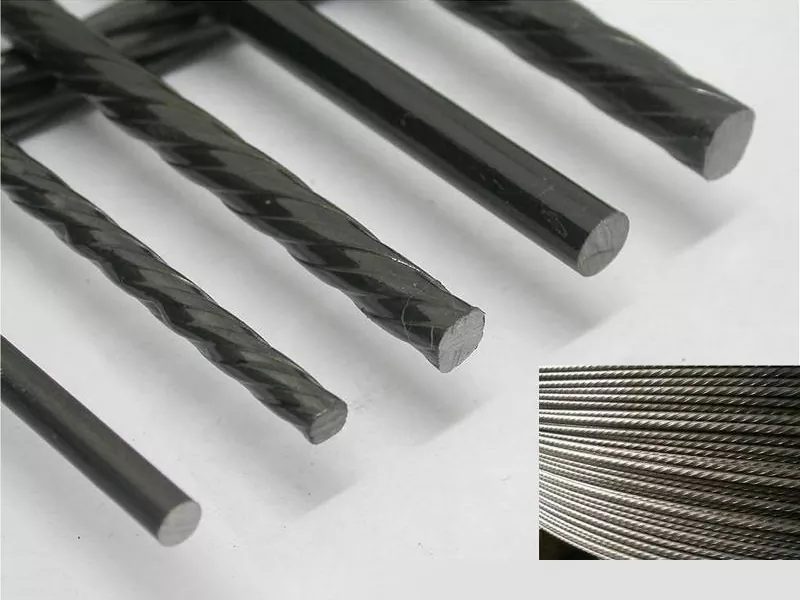

Construction Hardware: Prestressing Wire, Fastener Wire, Welding Wire

Power Cables: Aluminum-Magnesium Alloy Wire, Premium Copper Wire

Automotive Components: Tire Cord, Suspension Spring Wire

Customization Services:

For this High-Speed Precision Wire Drawing Machine, we offer customized solutions ranging from standalone units to complete production lines. Whether your raw materials consist of copper, aluminum, stainless steel, or specialized rare earth alloys, our technical team can develop an exclusive die schedule (Drafting Schedule) tailored to your needs, along with recommendations for targeted lubrication solutions. Furthermore, based on your facility's layout, we can customize the movement trajectory of the sliding control panel as well as the interlocking safety protection system.

Manufacturer Strength

Jiangsu Goodroller Machinery Co., Ltd. is a National High-Tech Enterprise headquartered in Zhangjiagang, Jiangsu, China. The 13,300㎡ manufacturing base integrates CNC machining centers, precision laser measurement systems, and automated assembly lines.

With 50+ patents, CE certification, ISO9001 compliance, and strategic cooperation with industry leaders, GRM Rolling Mill has exported equipment to the U.S., Russia, and Southeast Asia.

As a trusted China manufacturer and supplier, we are committed to delivering high-performance High-Speed Precision Wire Drawing Machine for global metal wire processing industries.

For detailed specifications or customized solutions, contact GRM Rolling Mill today.
